Zeiss TC

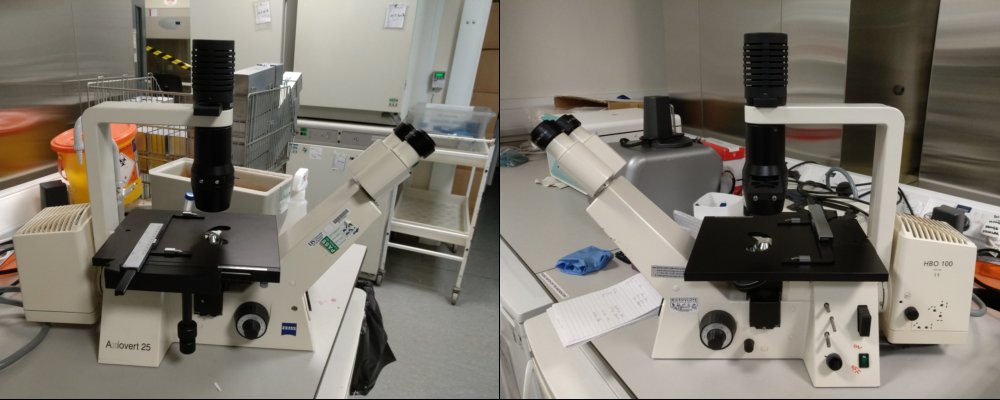

Image of Zeiss TC
General information

  Zeiss manual inverted fluorescence microscope dedicated for the inspection of cultured cells.

Application
  • Brightfield and 2-channel (green and red) fluorescence for fixed/live cell inspection
Accessibility
  • Tissue culture users, free of charge
  • Booking: not required
  • Location: GDSC 2.28 (Wolfson Tissue Culture Facility)
  • Maintenance provider: N/A
Microscope details
  • Microscope frame: Zeiss Axiovert 25
  • Objectives: 10x/0.22, 20x/0.3
  • Fluorescence light source: Zeiss mercury lamp unit
  • Brightfield imaging mode: BF and PH
  • Camera: N/A
  • Manual XY Stage: Zeiss
  • Manual objective focus
  • Manual filter cube switch
  • Live experiment support: N/A
  • Sample holder: universal slide holder
  • Optical bench: lab bench
  • Commercial dervice contract: N/A
Filter settings
Sample inspection setup
Fluorophores GFP BF DAPI
Filter Cube BP470/20-FT493-517/25 (Pos1) Empty (Pos2) AT350/50-FT395-BP445/50 (Pos3)

Condenser setup
Contrast Ph1 (Pos1) BF (Pos2) Ph2 (Pos3)
Matched objective 10x Ph1 any 20x Ph2

Workstation and software

N/A
