Leica TC

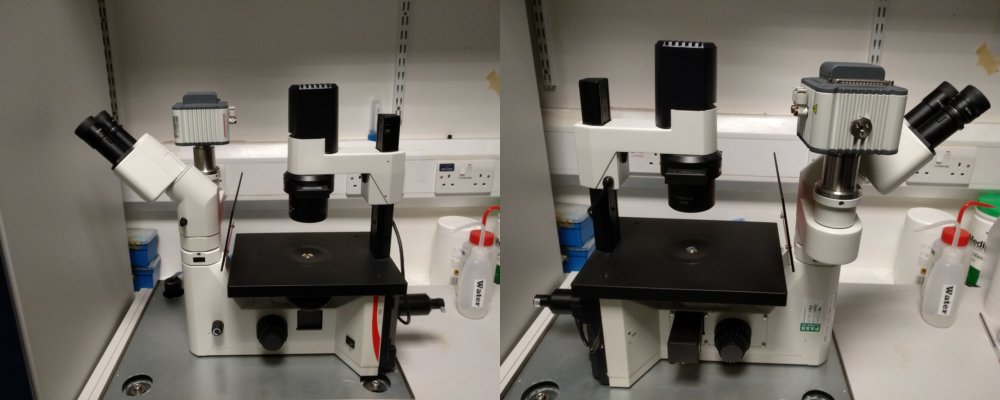

Image of LeicaTC
General information

  Leica manual inverted fluorescence microscope dedicated for cultured cell inspection.

Application
  • Brightfield and 2-channel (green and red) fluorescence for fixed/live cell inspection
Accessibility
  • All users, free of charge
  • Booking: not required
  • Location: GDSC 2.30
  • Maintenance provider: N/A
  • Switch On/Off Procedures
Microscope details
  • Microscope frame: Leica DMIL
  • Objectives: 10x/0.22, 20x/0.3
  • Fluorescence light source: Leica EL6000 metal halide
  • Brightfield imaging mode: BF and PH
  • Manual XY Stage: Leica
  • Manual objective focus
  • Live experiment support: N/A
  • Sample holder: free stand
  • Camera port is available
  • Optical bench: lab bench
  • Commercial dervice contract: N/A
Filter settings
Sample inspection setup
Fluorophores GFP BF Cy3
Filter Cube BP470/40-510-LP515 (Pos 1) empty (Pos 2) BP537/45-580-LP590 (Pos 3)

Workstation and software
  • Acquisition software: Micro-manager
  • Acquisition workstation
    • CPU: Intel Core Duo CPU E7500,
    • OS: Windows 10
    • RAM: 4 GB
    • Local data drive: 200GB
