Zeiss LSM510 Invert

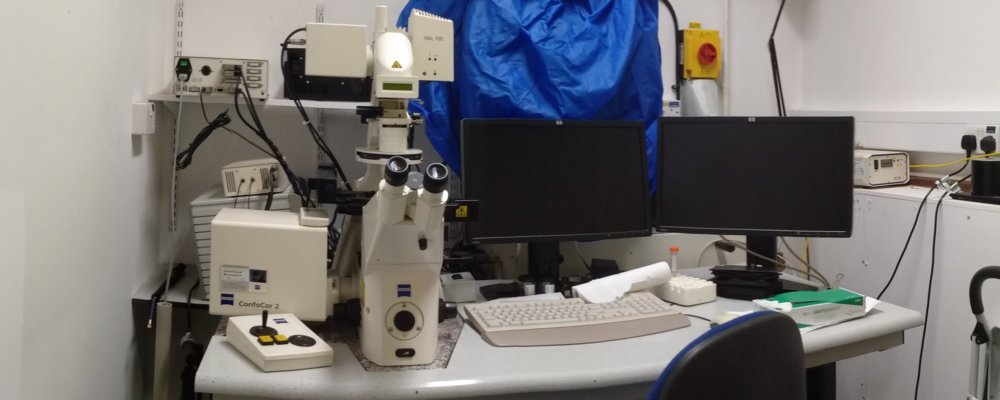

Image of LSM510 inverted
General information

Zeiss point scanning confocal based on an inverted microscope with motorized focus.

Application
  • Multi-channel confocal fluorescence imaging of fixed samples
Accessibility
Microscope details

  • Microscope frame: Zeiss AxioVert 200M
  • Galvo-Galvo scanner system with adjustable scanning speed(100 - 900 Hz)
  • ConfoCor 2 combi fluorescence correlation model
  • 3 PMT point detectors
  • Objectives: 10x/0.3, 20x/0.5, 100x/1.4 Oil
  • Excitation lasers: 458nm, 488nm, 514nm, 543nm, 633 nm
  • Light source for sample location: Zeiss mercury lamp unit
  • Brightfield imaging mode: BF and DIC
  • Motorised XY Stage
  • Motorised Z focus
  • Auto-focusing: N/A
  • Live experiment support: N/A
  • Sample holder: universal slide and petridish
  • Optical bench: passive
  • Commercial service contract: N/A

Filter settings
Sample location setup
Fluorophores DAPI GFP Cy3 DIC BF
Filter Cube Fset 49 wf Fset 38 wf Fset 43 wf Analyser Empty

Workstation and software

  • Acquisition software: LSM
  • Acquisition Workstation
    • CPU: Intel Xeon E5-2637 @3.5GHz (2 processors)
    • OS: Windows NT
    • RAM: 96GB
    • Local data drive: 2 TB
    • No network connection

Images taken from LSM510 invert
Image of follow me
