PerkinElmer Operetta

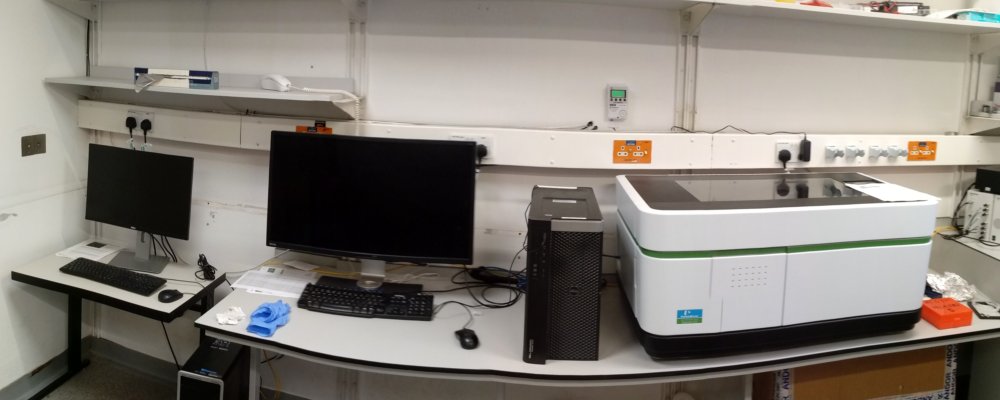

Image of Operetta
General information

  High-throughput content screening (HCS) system based on a PerkinElmer inverted microscope with spinning-disc, automatic XYZ stage, high resolution water objectives, autofocusing, and live experiment support.

Application
  • HCS brightfield and multi-channel confocal/widefield fluorescence imaging of fixed/live samples
  • Suitable for slides and well plates, optimized to well plates based experiment
  • Automatic multi-channel cell counting and fluorescence level quantification, and results presentation
Accessibility
Microscope details
  • Microscope frame: Operetta CLS
  • Objectives: 5x/0.16, 10x/0.3, 20x/0.4 LW, 20x/0.8, 40x/0.6 LW, 40x/1.1 W, 60x/1.15 W
  • Water objectives with active water feed
  • Fluorescence light source: PerkinElmer 8-channel LED
  • Brightfield imaging mode: BF and Digital Phase Contrast
  • Camera: PCO Edge 5.5 (sCMOS: 2160X2160, 6.45um, 16-bit, 53 fr/s)
  • XY Stage: PerkinElmer stepper motor stage
  • Auto-focusing: hardware and software
  • Live experiment support: heated live chamber (37 deg.) and 5% CO2 (humidified)
  • Sample holder: options of 4-slide and well plate holders
  • Optical bench: lab bench
  • Commercial dervice contract: PerkinElmer Gold plan + 1PM visit - Feb. 2023
Filter settings
Default setup
Fluorophores DAPI CFP GFP YFP
LED 365 405 440 475 510
Emission filter 430 - 500 nm 500 - 550 nm

Fluorophores Cy3 Cy5 Cy7 BF, dPH
LED 550 630 680 740
Emission filter 570 - 650 nm 655 - 760 nm Empty

Workstation and software
  • Acquisition/analysis software: Harmony V4.9
  • Acquisition workstation
    • Model: Dell Precision Tower7910
    • CPU: Intel Xeon E5-2620 V3 @2.4GHz (2 processors)
    • OS: 64-bit Windows 10
    • RAM: 32 GB
    • Local data drive: 2 TB RAID5
    • Network name: operetta.ad.susx.ac.uk
  • Analysis workstation
    • Name for booking: Workstation_Rome
    • Location: JMS 2C41
    • Model: Dell Precision T5500
    • CPU: Intel Xeon X5650 @2.67GHz (2 processors)
    • GPU: 2x NVIDIA Quadro K4200(1344 core & 4GB RAM each)
    • OS: 64-bit Windows 10
    • RAM: 18 GB
    • Local data drive: 1 TB
    • Network name: ?.ad.susx.ac.uk
    • Offline Harmony V4.9 with direct access to the database on acquisition workstation
    • Data presentation software: TIBCO Spotfire Analyst for High-Contect Analysis
Images taken from Operetta CLS
